LCA Navy - Nothing Succeeds Like Failure Redefined as Success!

LCA Navy NP2 fighter at Aero India 2015

The LCA Navy was an ill-conceived project that should have failed, and it did!

A naval fighter has to be designed and built for carrier operation from the ground up, not as an afterthought, as was the case with LCA Navy.

Strengthening the LCA for carrier operations proved to be a nightmare for ADA. The aircraft's undercarriage (u/c) - required to perform flareless landings with a high sink rate of 7.1 rn/sec, - became grotesquely over-sized because of its positioning in the fuselage. (Compare the u/c of LCA Navy Mk-1 above with that of the Tejas LCA below. The former looks oversized, the latter, elegant.)

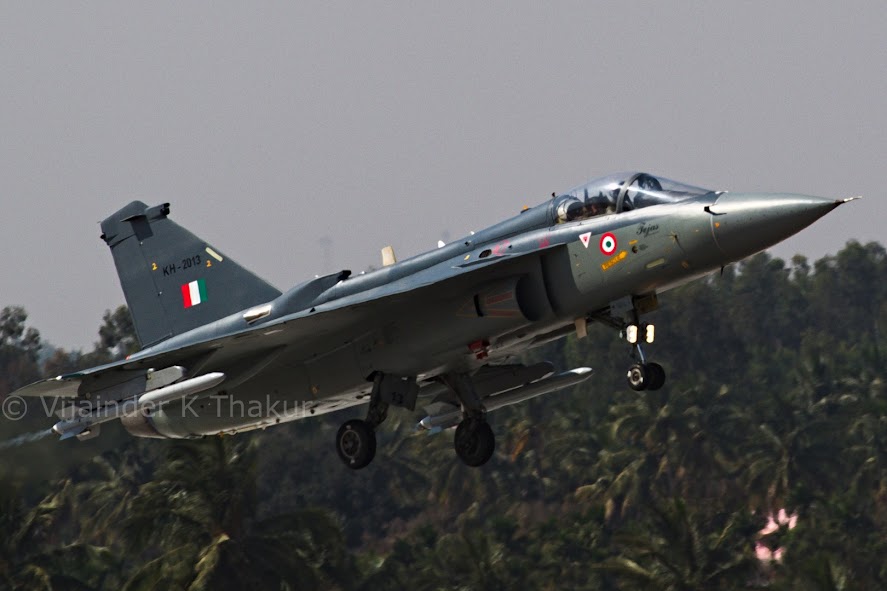

Tejas LCA on short finals at Aero India 2015

The strengthened u/c added weight and lowered the aircraft's performance. As a result, LCA Navy is never going to be operationally deployed on an aircraft carrier - it's very limited weapon load, range and performance wouldn't justify such deployment.

Close up of LCA Navy NP2 undercarriage at Aero India 2015

Success from Failure

Failure of an endeavor is often just a turning point on the road to success. Failure is never absolute; it can at best be defined as lack of success. Sometimes, failure can even be redefined as success.

The Indian Government sanctioned Full Scale Engineering Development (FSED) of Naval Light Combat Aircraft (LCA-Navy), capable of operating from an aircraft carrier, on March 28, 2003 with a PDC of March 27, 2010. Had the Indian Government defined LCA Navy as a technology demonstrator project, which is what it has ended up becoming, there would have been no doubt about the resounding success of the project!

As a technology demonstrator project, the LCA leaped out of doldrums when Navy Prototype 1 (NP-1) successfully executed its first ski-jump take-off at the SBTF in Goa on December 20, 2014.

NP-1 attempted the ski-jump after a 300-m roll in clean configuration presumably with full internal fuel. The safe take-off required 150 knot at a climb rate of 6.4 degrees. But, the aircraft bested the benchmark with a climb rate of around 11 degrees.

The flight also validated the hands-off take-off algorithm of LCA Navy's Flight Control Software (FCS).

LCA Navy NP1 trainer performs maiden ski jump at SBTF in Goa. Photo Credit: DRDO

Reason for Better than Expected Performance

Press reports on the better than expected climb performance of NP1 have been confusing. Here is simple and precise explanation.

The LCA's GE-F-404-IN20 engine needs be at 80% RPM for around 5-min for it to give assured peak thrust at full throttle. Since it's not practical for an operational aircraft to wait for 5 mins before take-off, ADA had factored in the lower than max thrust when calculating expected rate and angle of climb on leaving the ramp. The aircraft designers were pleasantly surprised when due to higher than expected thrust NP1 outperformed the conservative calculations.

It's now clear that LCA Navy Mk-1 could carry more weapons and fuel than initially thought.

At Aero India 2015, IDP Sentinel asked LCA Navy Project Director Commodore CD Balaji if the better than expected performance could result in the aircraft being operationally deployed on a carrier, were the LCA Navy Mk-2 project to be delayed.

"LCA Navy Mk-2 will not be delayed," said Balaji with a lot of confidence. "We are close to freezing its design, which has been simplified. The new design would be easy to implement."

LCA Navy Mk-2

Commodore Balaji's confidence was eye-opening - The biggest pay-off from the LCA Navy project may well be ADA's increasing confidence in its ability to tweak fighter aircraft design to squeeze out better performance. This is evident from the following

LCA Navy Mk-2 has been designed from the ground up as a Navy fighter, independently of Tejas LCA Mk-2.

The fuselage of the aircraft has been broadened and the wing roots moved outwards. As a result, aircraft design has been optimized for supersonic flight with perfect conformance to area rule. (Tejas LCA and LCA Navy Mk-1 do not conform perfectly to area ruling resulting in high supersonic drag.)

LCA Navy Mk-2 scale model at Aero India 2015.

Mid section fuselage broadening allows undercarriage bays to be shifted outwards, allowing a simpler, straight and light undercarriage as in the Rafale.

Mid section fuselage broadening also increases fuel capacity.

That is three birds with one stone!

Look closely at the photo of LCA Navy Mk-2 scale model at Aero India 2015, and compare it with the similar view of the LCA Navy Mk-1 on static display at Aero India 2015. Notice how the air intakes in the Mk-2 model bulge out to align with the broadened fuselage.

LCA Navy NP2 at Aero India 2015

Finally, the following design layout of LCA Mk-2 from a brochure distributed during Aero India 2015 clarifies what I have stated above about the design tweaks.

LCA Navy M-2

IDP Sentinel members can read more about LCA Navy at the link below.
